Vent control

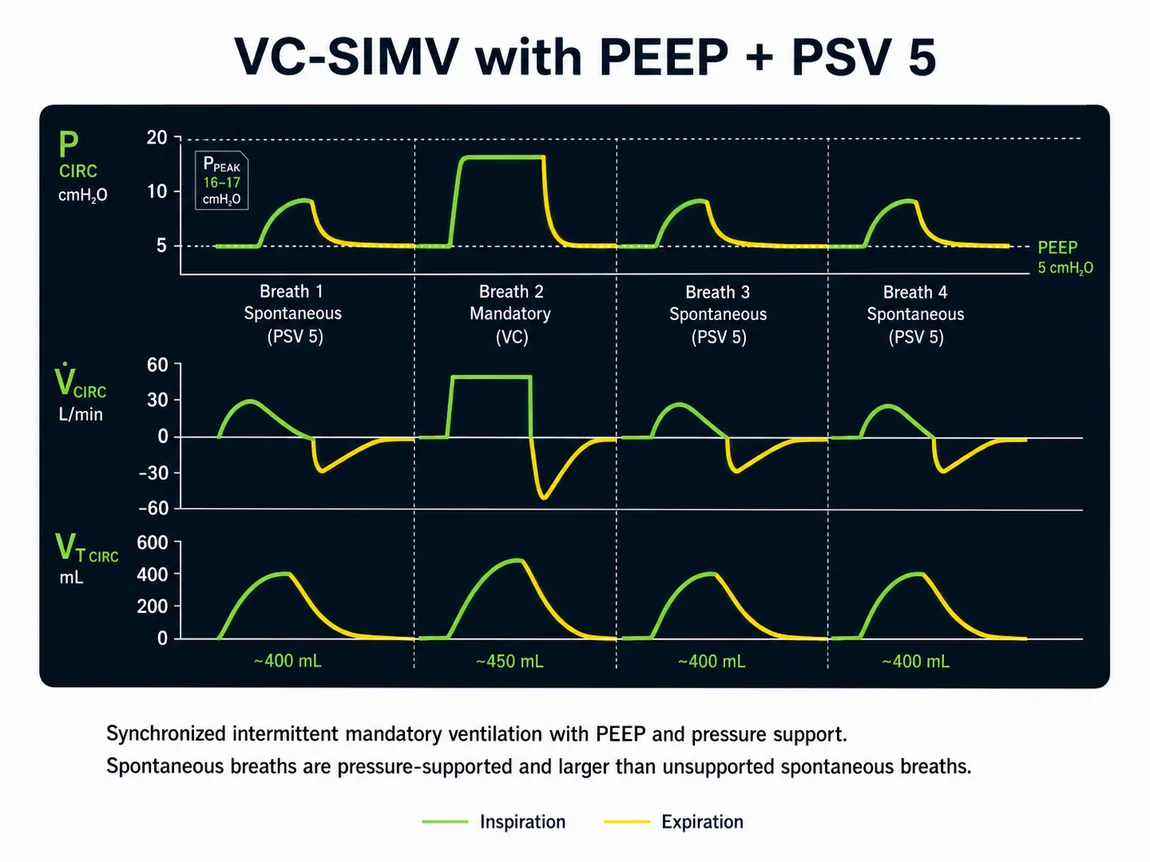

VC-SIMV with PEEP + pressure support

Reference for synchronized intermittent mandatory ventilation with pressure-supported spontaneous breaths.

Compare IMV without PSVUnsupported spontaneous breaths.If timing mismatchOpen dyssynchrony branch.

VC-SIMV with PEEP + PSV

VC-SIMV with PEEP + PSV

Spontaneous breaths are pressure-supported and larger than unsupported spontaneous breaths.

Original Airway of the Month teaching diagrams redrawn from standard ventilator scalar and loop conventions. Interpretation is anchored to the AARC 2024 Patient–Ventilator Assessment guideline, the peer-reviewed Basics of Ventilator Waveforms review, the 2026 SYNAPsE asynchrony consensus, and the University of Pennsylvania Ventilator Overview and Troubleshooting tip sheet. Waveforms are pattern-recognition aids, not diagnoses; display colors, labels, and orientation vary by ventilator brand.

Use

  • Shows the difference between mandatory breaths and pressure-supported spontaneous breaths.
  • Monitor spontaneous tidal volumes; excessive volumes can occur with high pressure support.
